Product card
Type
FFUF301512A
GTIN
6418677154744
E-number
3440564
Name

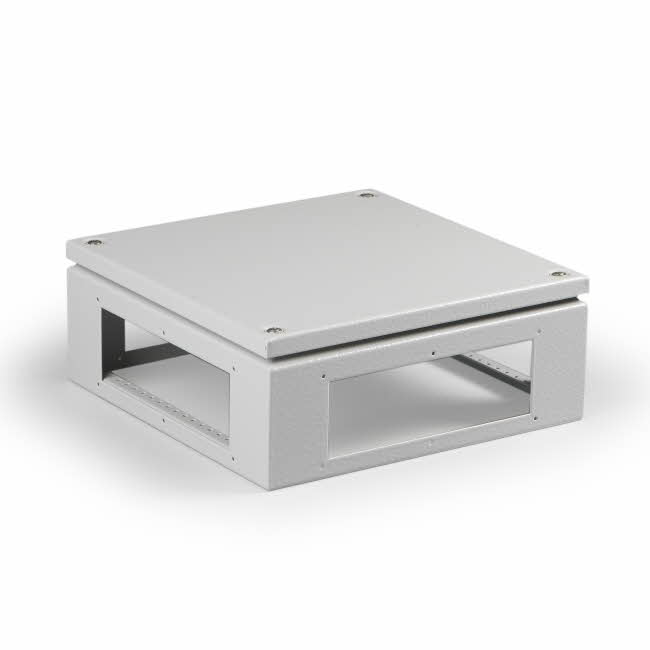

Size 300 x 150 x 120 mm, flange openings, polyester painted mild steel
Description
The Casemet Cubo F series includes polyester painted mild steel terminal enclosures with flange openings. Cover flange included.
Unit
PCE
Technical information
| Common name | Size 300 x 150 x 120 mm, flange openings, polyester painted mild steel |
Dimensions |
|
| Height | 150 mm |
| Width | 300 mm |
| Depth | 120 mm |
| Weight | kg |
| Volume | 5400 cm3 |
| Size | 300 x 150 x 120 |
| Inner depth | 103.5 mm |
| Outer base depth | 105 mm |
| Outer cover height | 15 mm |
| Impact strength | IK09 |
| Standards | EN 62208, UL A508, DNV-GL |
| Degree of protection (IP) | IP66 |
