Product card
Type
FFUW502012A
GTIN
6418677198892
E-number
3440598
Name

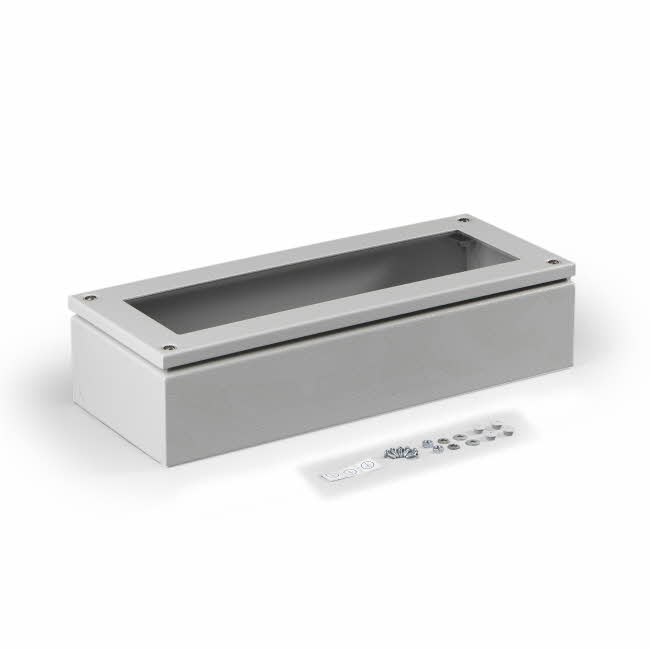

Size 500 x 200 x 120 mm, with plain sides and PC window, size 420 x 120 mm
Description
The Casemet Cubo F series includes polyester painted mild steel terminal enclosures with plain sides and a polycarbonate window. As a standard, the terminal enclosures include a perforated support for a mounting plate or DIN-rail.
Unit
PCE
Technical information
| Common name | Size 500 x 200 x 120 mm, with plain sides and PC window, size 420 x 120 mm |
Dimensions |
|
| Height | 200 mm |
| Width | 500 mm |
| Depth | 120 mm |
| Weight | kg |
| Volume | 12000 cm3 |
| Size | 500 x 200 x 120 |
| Inner depth | 101.5 mm |
| Outer base depth | 105 mm |
| Outer cover height | 15 mm |
| Impact strength | IK07 |
| Standards | EN 62208, UL A508, DNV-GL |
| Degree of protection (IP) | IP66 |
